In 2013, a meteor lit up the sky over Chelyabinsk, Russia. Within hours, videos surfaced from nearly every angle. Not from surveillance towers. But from dashboards.
Russia’s widespread dashcam use turned a cosmic event into a global moment. And it wasn’t a one-off. Over the past decade, dashcams have quietly become one of the most impactful consumer technologies on the road, recording crashes, curbing fraud, and even going viral on TikTok.
The dashcams market is growing at a fast pace, expected to be worth $8.3 billion globally by 2030. What started as a fleet tracking tool is now used as a courtroom exhibit, a parenting aid, and even a popular YouTube channel.
But who invented the dashcam? Was it law enforcement? Automakers? Or just a clever aftermarket hack? The truth is more complex and involves way more patents than most people realize.
In this article, we’ll uncover the hidden history of dashcam innovation, spotlight the patents that enabled it, and show how you can trace this evolution yourself using Global Patent Search.
The Origins: From Fighter Jets to Windshields
The dashcam didn’t start in a car. It started in the air.
In the 1930s and 1940s, military aircraft began using basic onboard cameras to document training flights and combat missions. These systems were bulky, film-based, and often rigged manually. By the Vietnam War, forward-facing gun cameras became common across U.S. and Soviet fighter planes, capturing critical video for review and training.
The below image showcases Gun camera sequence photos showing a North Vietnamese MiG-17 being hit and shot down by 20 mm shells from a U.S. Air Force F-105D Thunderchief during the Vietnam War.
Source – Pinterest
These were the spiritual ancestors of the dashcam, devices designed to witness events as they happened.
The idea of a camera continuously recording from a fixed front-facing view began entering civilian vehicles in the late 1980s. But not in the hands of everyday drivers.
The Law Enforcement Link
In the United States, the earliest institutional use of in-car video systems came through police departments. In 1988, the Texas Department of Public Safety piloted one of the first large-scale deployments of dash-mounted VHS camcorders in patrol vehicles. These units were connected to the cruiser’s electrical system and activated during traffic stops to ensure officer accountability and collect evidence.
The system wasn’t elegant; tapes had to be manually swapped, stored, and reviewed, but it worked. By the mid-1990s, multiple departments were experimenting with in-car video.
The Push Toward Consumer Use
While police departments were building protocols around in-car cameras, a different kind of innovation was unfolding in Japan. In the early 2000s, Japanese electronics manufacturers such as Kenwood, Yupiteru, and PAPAGO began introducing compact dashboard cameras targeted at everyday drivers. These devices were known as “drive recorders” and were marketed as tools for insurance defense and accident reconstruction.
Simultaneously, Taiwan and South Korea began adopting dashcams in both consumer and fleet contexts. South Korean insurers were among the first to offer discounts to customers who installed them, making the devices mainstream by the early 2010s.
In Russia, the adoption took a different route. Legal inconsistencies and widespread insurance fraud, including staged collisions, pushed millions of drivers to install dashcams as self-protection tools. By 2012, the country had the highest dashcam penetration rate in the world.
Corporate and Tech Contributions
Several consumer tech companies started investing in the space as video compression, battery life, and flash storage improved:
- Garmin, known for GPS systems, launched its first dashcam in 2014.
- BlackVue (Korea) helped popularize Wi-Fi-enabled dual-channel dashcams.
- Thinkware, Nextbase, and Viofo pushed innovation around cloud backup, parking surveillance, and voice control.
Behind many of these features were hardware vendors and component suppliers, image sensor makers like Sony (Exmor series), chipmakers like Novatek and Ambarella, and lens manufacturers in Shenzhen, shaping the product through IP-rich modules.
From Idea to Real-World Tech: The Consumerization of the Dashcam
The dashcam made the leap from niche tool to mainstream necessity thanks to three intersecting forces: better hardware, changing laws, and consumer demand for protection in a world full of uncertainties.
The Tech That Made It Work

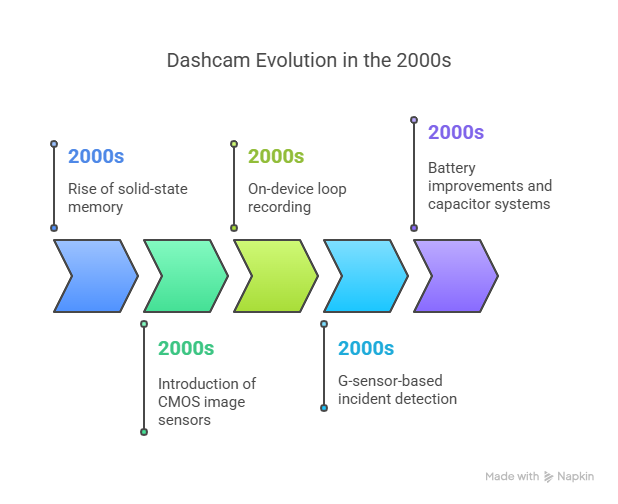

In the 2000s, hardware began catching up with the concept. Recording video used to mean bulky VHS tapes or high-end DV cameras. That changed with the rise of solid-state memory (SD cards), low-power CMOS image sensors, and on-device loop recording, where the camera automatically overwrites old footage unless an incident is detected.
One of the defining technological leaps was G-sensor-based incident detection, allowing the camera to save footage when it detects a jolt or collision automatically. This is now a standard feature in almost every dashcam, and it’s built on patented technologies that link motion sensing with triggered data logging.
Battery improvements and the introduction of capacitor-based power systems also helped. These were more heat resistant than traditional lithium-ion batteries and better suited for the extreme conditions inside car cabins.
The Rise of Dual-Channel and Cloud-Connected Systems
By the 2010s, demand shifted toward dual-channel systems that record both the front and rear of a vehicle. This wasn’t just about accident footage; it was about capturing road rage, tailgating, and even driver behavior inside taxis and rideshare vehicles.
This was also the era of the cloud-connected dashcam. Companies like BlackVue, Nextbase, and Vantrue began offering mobile apps, automatic uploads, parking surveillance with motion detection, and GPS-tagged incident logs.
The market matured rapidly, moving beyond plug-and-play recording to smart event logging, AI-powered incident detection, lane departure warnings, and integrations with platforms like Google Assistant or Amazon Alexa.
Real-World Adoption: Insurance, Rideshare, and Regulation
- Insurance Incentives: In South Korea, drivers with dashcams began receiving insurance discounts as early as 2012. That model expanded into Japan, Taiwan, and parts of the EU.
- Rideshare and Fleets: Uber and Lyft drivers adopted dashcams both for liability protection and personal safety. Fleets and logistics companies use them to reduce insurance costs and monitor driving behavior.
- Policy and Law: In Russia, the legal system indirectly mandated dashcams. Without reliable third-party evidence, drivers often faced fraudulent claims, making dashcams a form of legal self-defense.
By the late 2010s, the dashcam wasn’t just a gadget. It was a trusted observer in traffic courts, insurance claims, YouTube channels, and viral news stories. The idea had become essential infrastructure, and it was wrapped in patents the whole way.
From Black Boxes to Dashcams: The Patent Trail That Built the Tech
Today’s dashcams are compact, cloud-connected, and packed with AI. But the technical roots of this technology stretch back much further.
To understand how dashcams evolved before becoming a consumer product, we used the Global Patent Search (GPS) tool to explore patents filed between 1970 and 2000.
The reason behind choosing this period was that it captured the pre-mainstream era. This was the time when the core ideas behind dashcams began taking shape inside military prototypes, law enforcement systems, and early vehicle-mounted camera setups. These inventions were not yet commercial products, but they introduced critical functions like sensor-triggered recording, timestamping, shock-based activation, and onboard image storage.

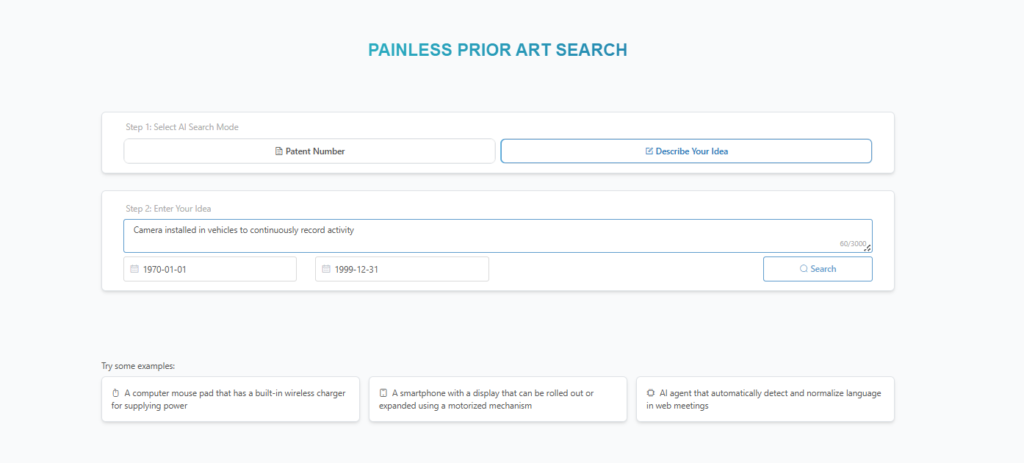

We used GPS to run a plain-language query: “Camera installed in vehicles to continuously record activity”.
Source – GPS
This surfaced a detailed timeline of patents filed across Japan, Germany, the United States, and other regions. Together, they reveal how dashcam technology matured quietly, often years before the public saw its full potential.
Below listed are 15 of those patents that helped shape the dashcam technology:
| Priority Date | Patent Number | Title | Description |
| 1973-07-16 | CH619060A5 | Vehicle Data Recorder Employing Data Compression | Analog transducers log events; records on magnetic tape using data compression logic, vital for in-vehicle memory efficiency. |
| 1978-06-19 | US4365881A | Photographic Camera With Timepiece | Embedded timepiece; timestamping of images begins, influencing evidence-ready cameras. |
| 1979-02-08 | DE2904665A1 | Support For Heavy Camera | Universal joint support; allowed mounting cameras on vehicles securely. |
| 1979-04-30 | DE3015737A1 | Motor Car Monitor With TV Camera | In-car video camera activated by sensor events, using memory management to record key events. |
| 1979-05-28 | DE2921603A1 | Inertially Operated Camera For Car | Mechanically triggered camera to capture images during braking or impact. |
| 1980-04-23 | JPS5650323A | Cinecamera Having Simultaneous Sound Recording | Integrated microphone and camera; hints at future dual-channel (video+audio) dashcams. |
| 1980-10-31 | JPS5778281A | Electronic Camera | Trigger-based single-frame image capture from video; early event-driven imaging. |
| 1981-02-26 | US4888651A | Video System | General video recording setup combining camera + recorder. Baseline tech for early dashcam assembly. |
| 1981-05-15 | FR2505752A1 | Vehicle Roof Mounted Camera Triggered By Shock | Early auto-triggered accident camera capturing post-impact sequence. |
| 1988-03-03 | FR2628180A1 | Film or TV camera operator harness support | Camera stabilization system, relevant to stable vehicle-mounted video. |
| 1991-05-22 | JPH04344421A | Traffic Accident Recorder In Crossroad | Microphone-based event recording triggered by sound pressure or signal violations. |
| 1992-02-27 | JPH0571999U | Run Vehicle Measuring Device | Used to read license plates using CCD cameras at highway shoulders. |
| 1994-03-02 | GB2287152A | Vehicle Security System | Hidden in-vehicle camera with local or remote storage. |
| 1995-07-31 | JPH0946627A | Camcorder | Camcorder that logs position/time data; essential for GPS-stamped dashcam footage. |
| 1995-12-09 | DE19545990A1 | Recording System With Video Camera | Captures camera motion parameters, allows for context-aware video logs. |
| 1996-10-22 | JPH10121413A | Mobile Road Surface Diagnostic Device | In-vehicle front/back cameras with audio, used for road patrol documentation. |
| 1997-04-24 | DE19717226A1 | Monitoring System For Road Vehicles | Forward-facing camera with acceleration-triggered recording and data compression. |
| 1998-03-13 | DE19811011A1 | Vehicle With Onboard Camera For Recording Accident | Driver-activated or event-triggered camera recording nearby surroundings. |
| 1998-06-20 | DE19827622A1 | Video Recorder For Vehicle Accidents | Sensor-based recording including visuals + telemetry (speed, brake, etc.). |
| 1999-01-14 | DE19901200A1 | Accident Data Logger With Video Recording | Tamper-proof crash logger with synced image + environment data. |
| 1999-03-16 | US20030210328A1 | 360 Degree Automobile Video Camera System | Surround-view camera inside vehicle for panoramic recording. |
| 1999-03-25 | ES2161128A1 | Automatic Device For Recording Image and Speed | Records image + velocity of car using onboard motion sensors. |
| 1999-03-31 | JP2000280832A | Image Recording Method For Moving Body | Logs video, GPS position, and timestamp; marks shift toward modern dashcams. |
Standards, Licensing, and IP Complexity: A Fragmented Ecosystem
Unlike technologies governed by formal standards, like Wi-Fi (802.11) or USB, dashcam technology has no global standard body defining how devices should function, communicate, or store data. That lack of standardization creates both freedom and friction.
No Standard = Innovation Without Guardrails
The absence of a universal dashcam protocol has allowed manufacturers to experiment wildly. That’s why we see:
- Different file formats (.MP4, .AVI, proprietary encodings).
- Varying loop lengths and compression settings.
- Proprietary apps and firmware ecosystems.
- Unregulated sensor calibration methods.
But this also means interoperability is poor, and innovations are often protected via individual patents or design secrecy, not shared standards. One company’s “AI parking alert” may work totally differently and be protected differently than another’s.
The Licensing Landscape: No Patent Pools, Just Quiet Enforcement
Dashcams also lack any formal licensing pools like MPEG LA or Via Licensing. Companies go it alone:
- BlackVue, Thinkware, and Garmin file individual patents, mainly to protect firmware behavior, app features, and form factors.
- Lytx and KeepTruckin rely on U.S. patents to protect event detection and cloud integration, mainly in the B2B fleet space.
- Chinese brands often operate in legally ambiguous zones, where enforcement depends more on platform compliance (Amazon, Alibaba) than legal precedent.
This fragmented IP approach makes it hard to know who “owns” what. Two devices may look identical, but use completely different firmware logic; one is patented, and the other is not. And that opens the door to accidental infringement, especially among fast-scaling consumer brands.
A Quiet IP Minefield
Because there’s no central dashcam IP licensing framework:
- Startups often don’t know if they’re infringing until they get a takedown notice or cease-and-desist.
- Big brands rely on enforcement, not negotiation, to maintain IP control.
- Patent thickets, overlapping claims around sensor logic, video buffers, and event triggers are becoming more common, especially as AI enters the space.
The result is a space where innovation is thriving, but also increasingly risky. For businesses looking to launch or integrate dashcam tech, due diligence around patents isn’t optional. It’s essential.
How Global Patent Search Can Help You Navigate This Tech?
Dashcam innovation didn’t happen in a straight line. It came from law enforcement labs, consumer electronics brands, chipmakers, and AI startups, all filing patents in different countries, languages, and formats. There’s no centralized map. No ISO standard to consult. Just a fragmented trail of innovation hidden across patent databases.
That’s exactly the kind of challenge Global Patent Search was built for.
Unlike traditional patent tools that expect you to enter a number or IPC code, GPS starts with what you actually know: the feature, the function, and the user experience. You can type in:
- “A camera that records when the car is hit while parked”
- “A dashcam with both interior and road-facing lenses”
- “Footage that uploads to the cloud when triggered by motion”
And GPS will return relevant patents that match that real-world description, even if the original inventors used complex legal phrasing or filed under obscure classifications.
Whether you’re:
- Validating novelty for a new product.
- Investigating prior art before filing.
- Tracking how certain features evolved.
- Or just curious who owns what in a technology.
GPS helps you cut through the noise and find the core inventions.
Because when the tech is this unstandardized, the only way to truly understand it is to see who filed what and when. Explore Global Patent Search and start tracing a technology’s innovation story by yourself.
